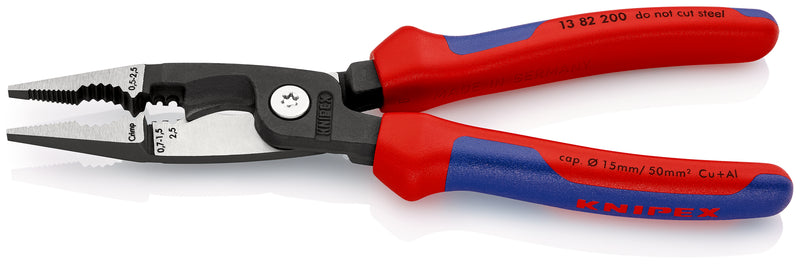

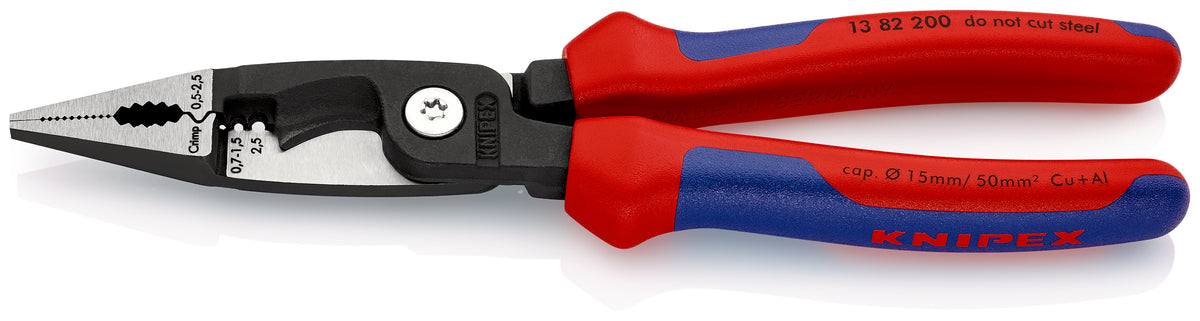

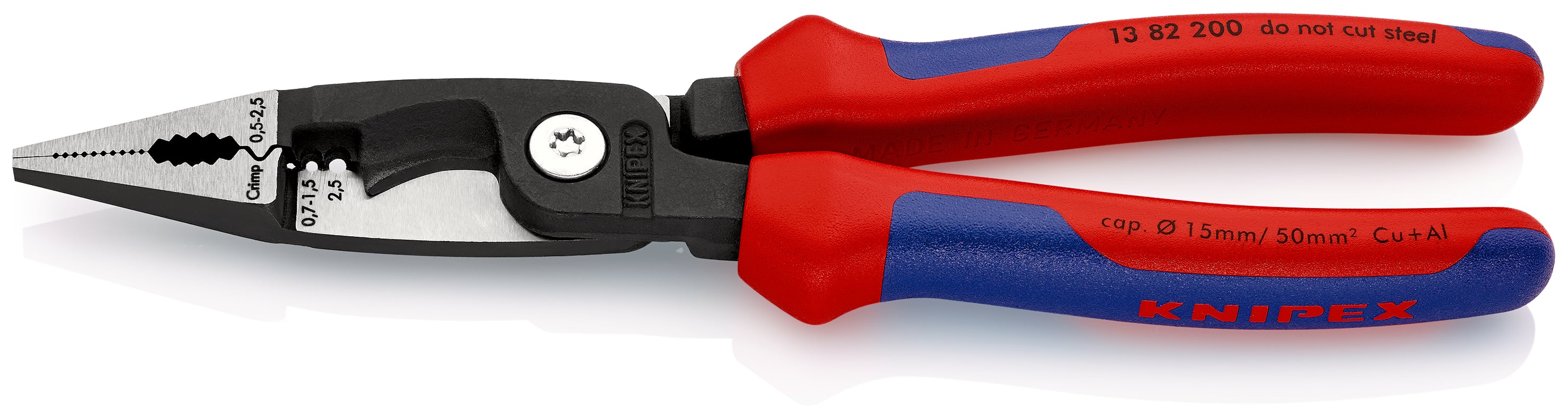

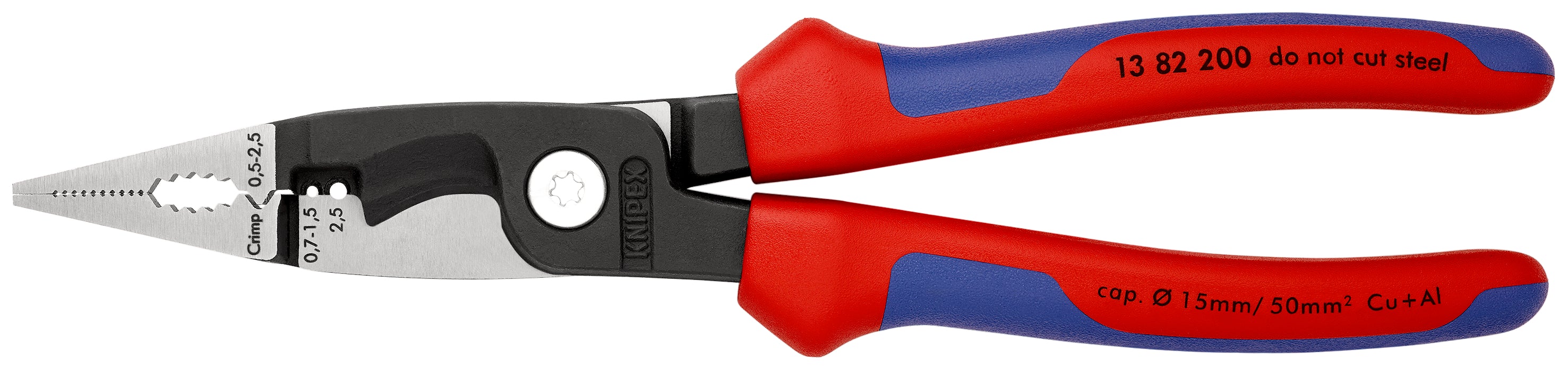

6 functions in one pair of pliers. multifunctional pliers for the electrical installation; to grip flat and round material, for bending, deburring, cutting cable, stripping and crimping wire ferrules. Smooth surfaces near the tips grip single cores without damaging them; serrated gripping surfaces and pipe grip for gripping flat and round material. Clear-cut outside edge on the gripping surfaces for working on flush-mounted junction boxes and deburring feed-through holes. Stripping holes for conductors of 0.75 - 1.5 mm² and 2.5 mm². Crimping die for wire ferrules 0.5 - 2.5 mm². Cable shears with (induction-hardened) precision cutting edges for copper and aluminium cables up to 5 x 2.5 mm² / Ø 15 mm. Slim dimensions for easy access. Bolted joint: precise, zero backlash operation of pliers.
Cutting capacity copper cable, multiple-stranded: Ø 15 mm
Cutting capacity copper cable, multiple-stranded: 50 mm²
Stripping capacity for cross-sections: 0.75 — 1.5 mm² / 2.5 mm²
Capacity in square millimetres: 0.5 — 2.5 mm²
AWG: 1 / 0 Technical Specifications:
- Smooth surfaces near the tips grip single cores without damaging them
- Serrated gripping surfaces and pipe grip for gripping flat and round material

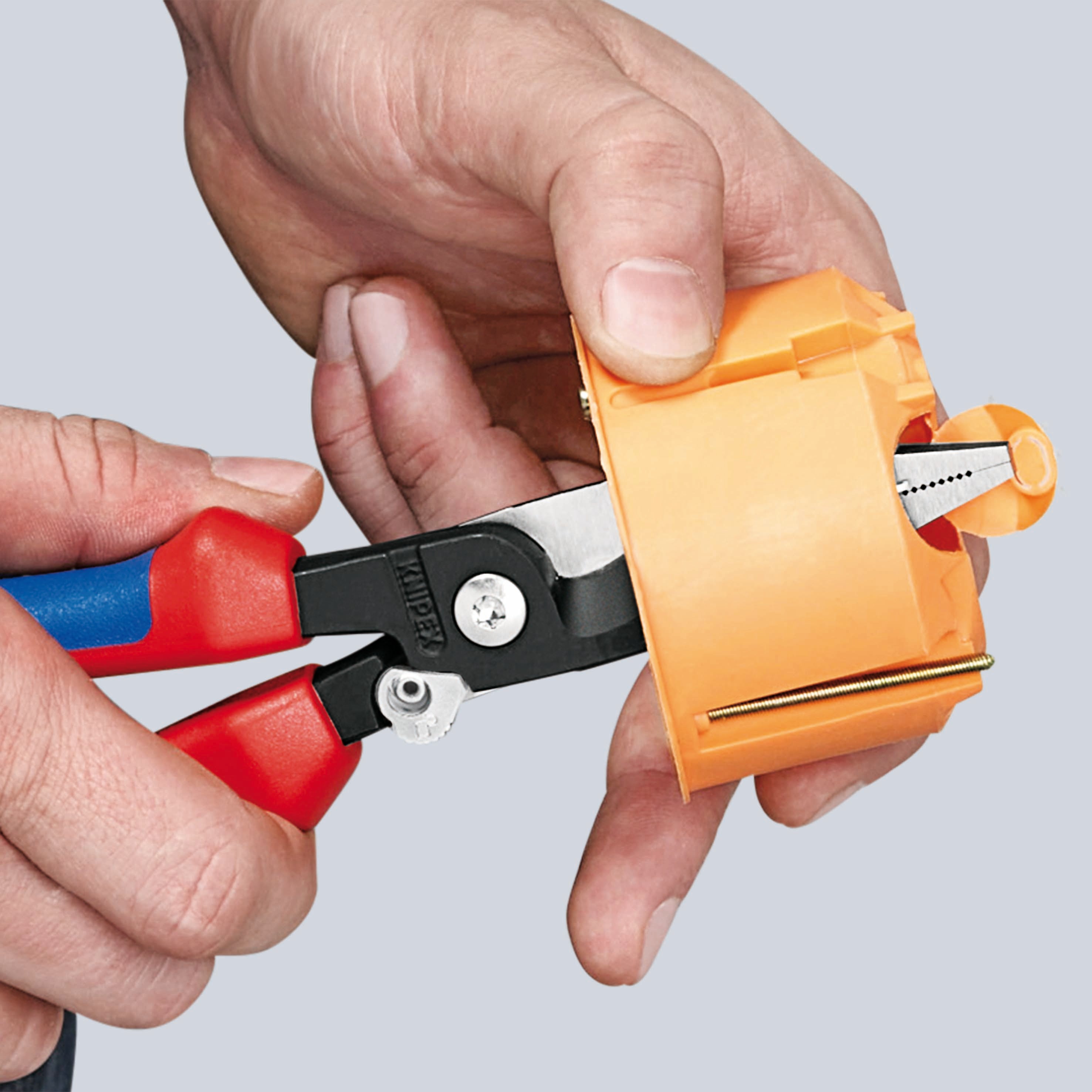

- Clear-cut outside edge on the gripping surfaces for working on flush-mounted junction boxes and deburring feed-through holes

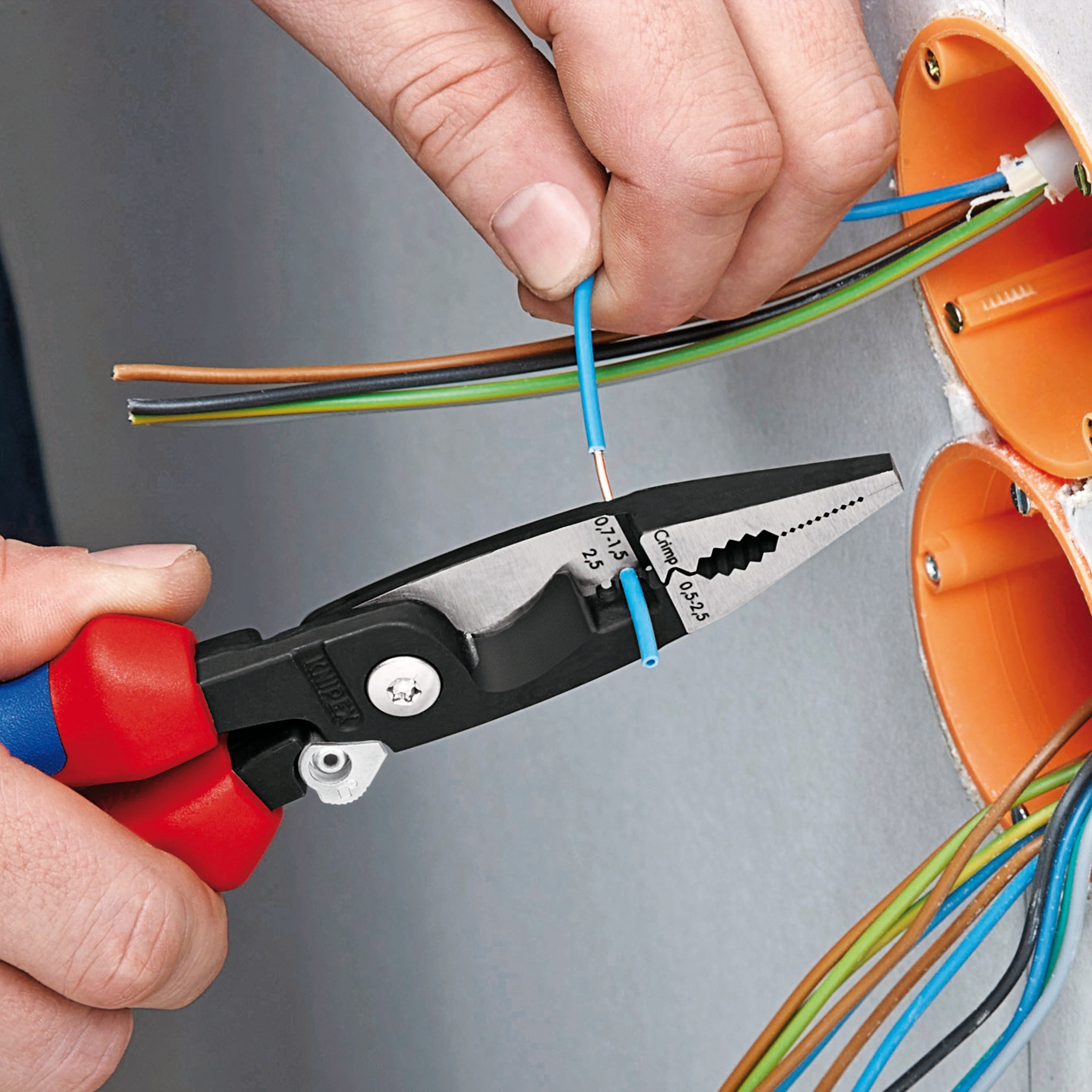

- Stripping holes for conductors of 0.75 - 1.5 mm² and 2.5 mm²

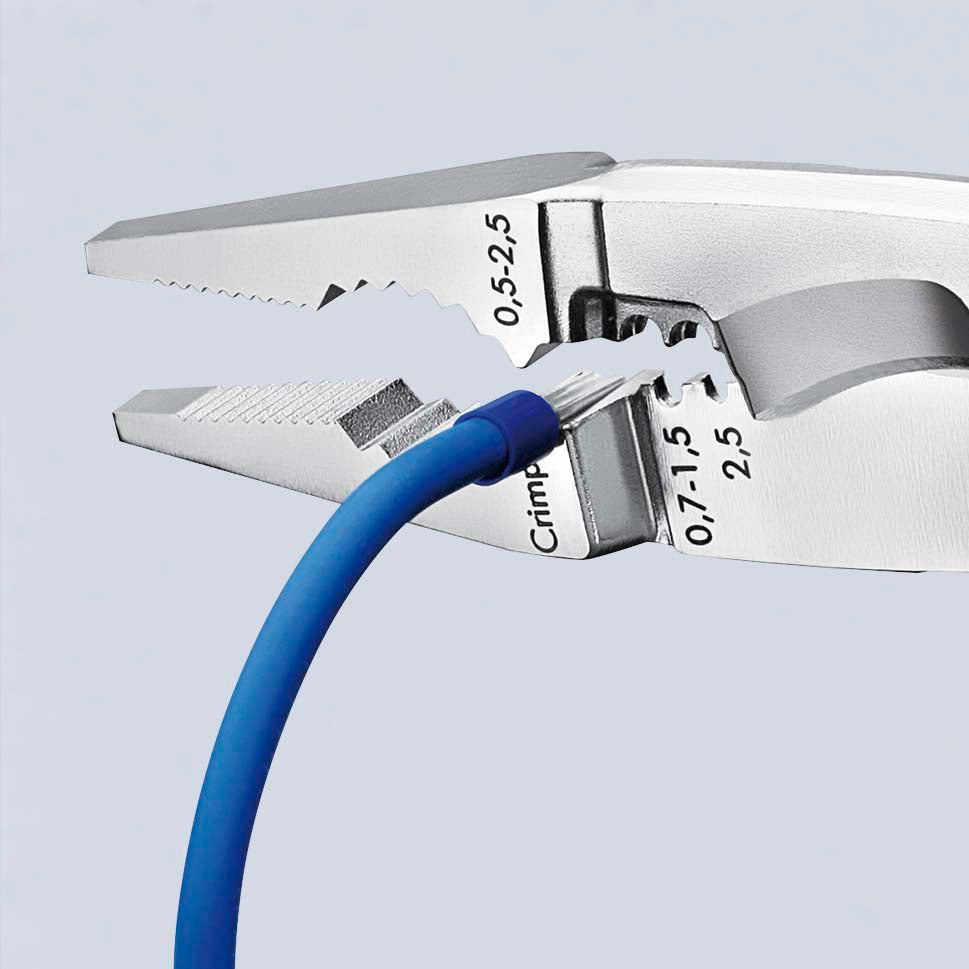

- Crimping die for wire ferrules 0.5 - 2.5 mm²
- Cable shears with (induction-hardened) precision cutting edges for copper and aluminium cables up to 5 x 2.5 mm² / Ø 15 mm
- Slim dimensions for easy access
- Bolted joint: precise, zero backlash operation of pliers
