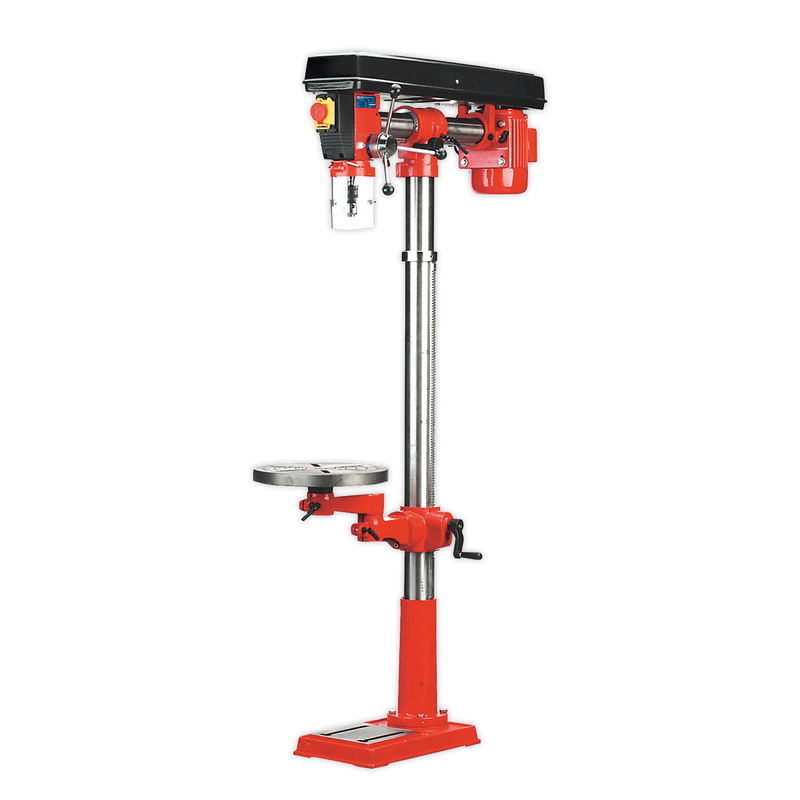

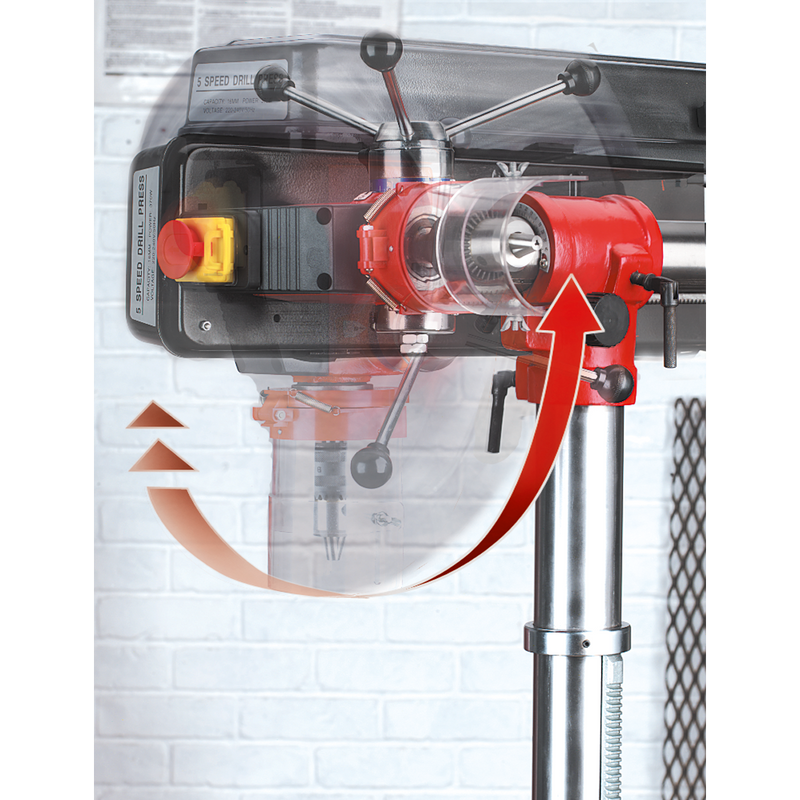

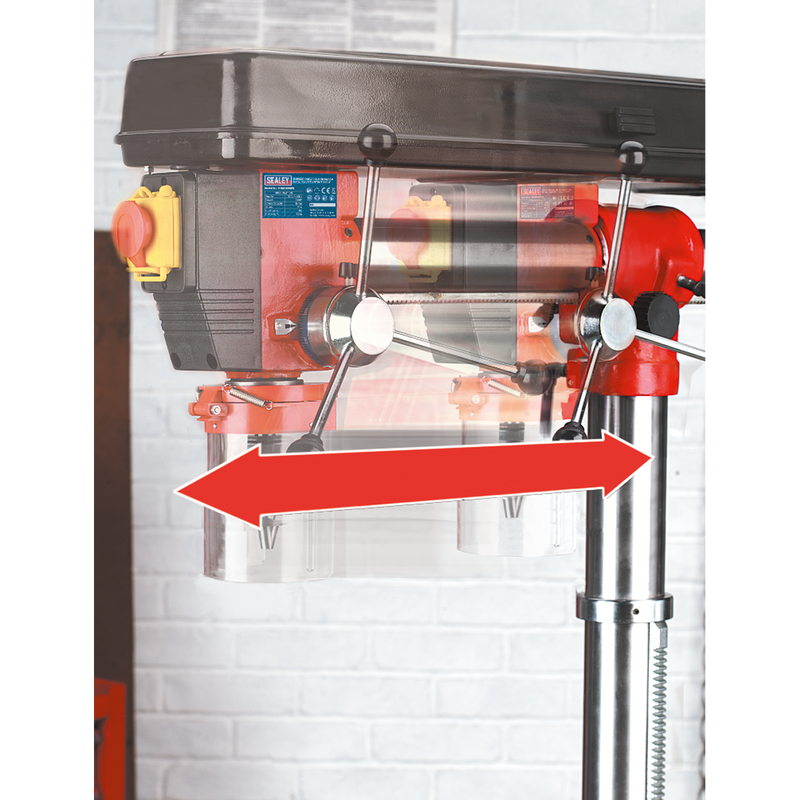

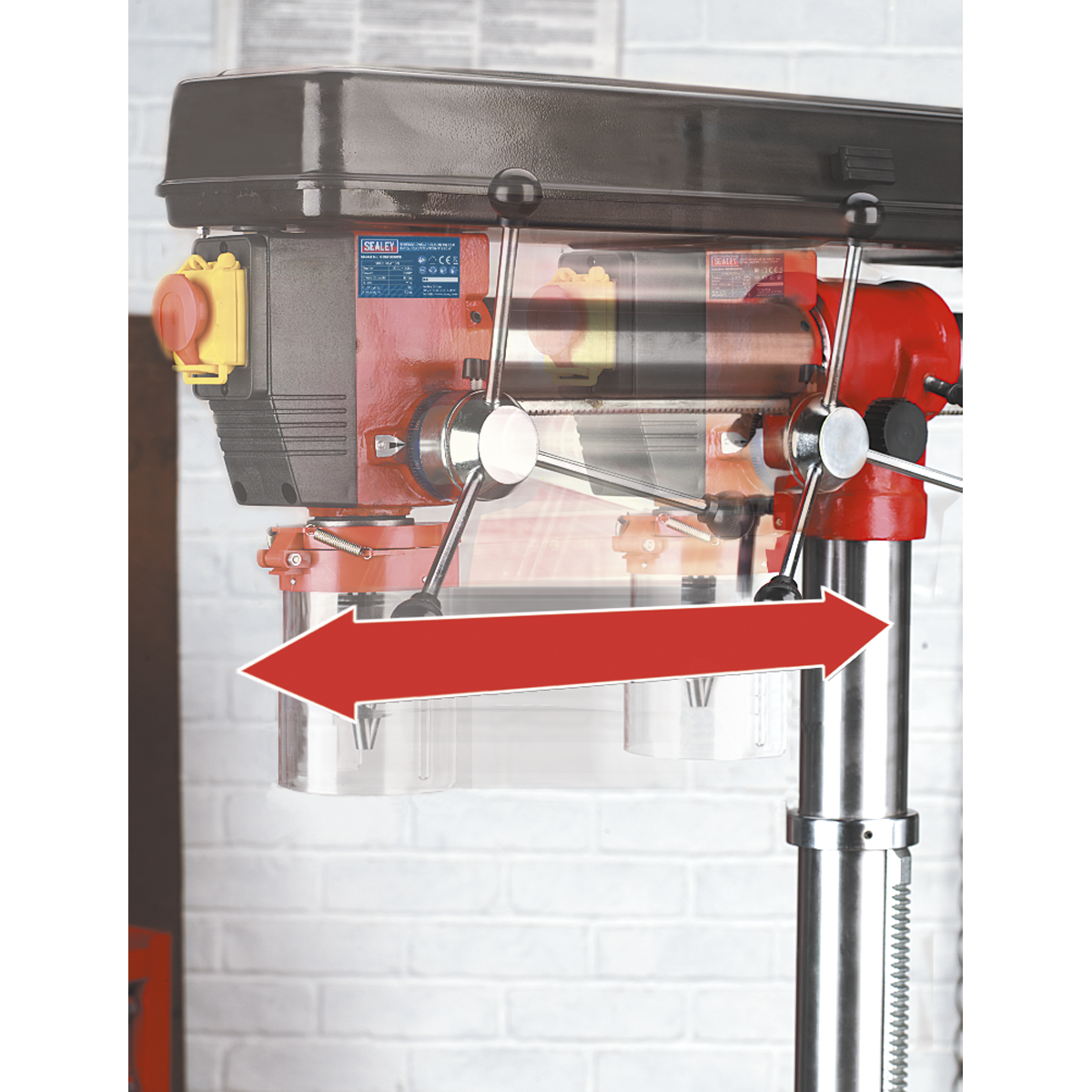

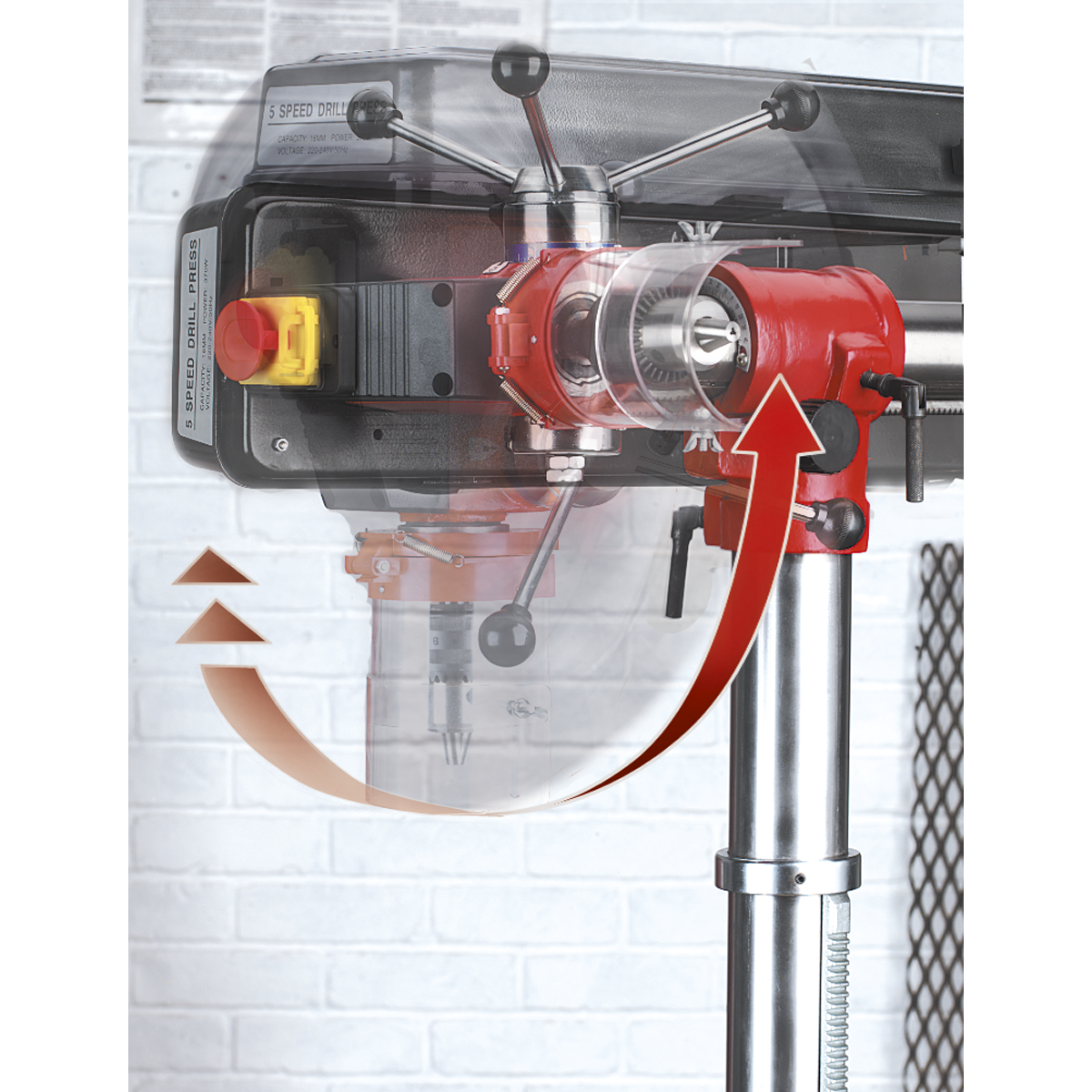

Heavy-duty construction. Safety devices fitted include a no-volt release switch and pulley cover cut-out microswitch. Radial feature allows off-table drilling and angle drilling. Features a maximum throat depth of 420mm. Radial arm controlled by rack and pinion assembly allowing fine positioning of drill bit. Mortise attachment available, order Model No. MA10. Also available as floor standing type - Model No. GDM1630FR.
Specification
- 16mm(5/8") Capacity chuck, MT2.

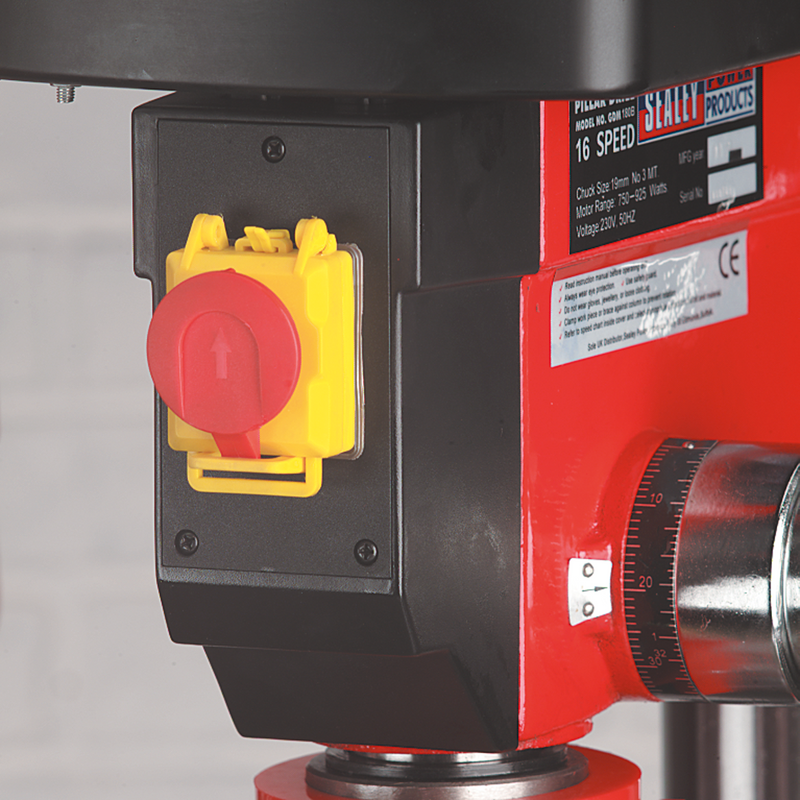

- Fitted with no-load voltage switch and locking cover to prevent accidental starting.
- Height: 1620mm.
- Spindle Centre to Column - Max: 420mm.
- Motor Power: 550W.
- Column Diameter: 70mm.

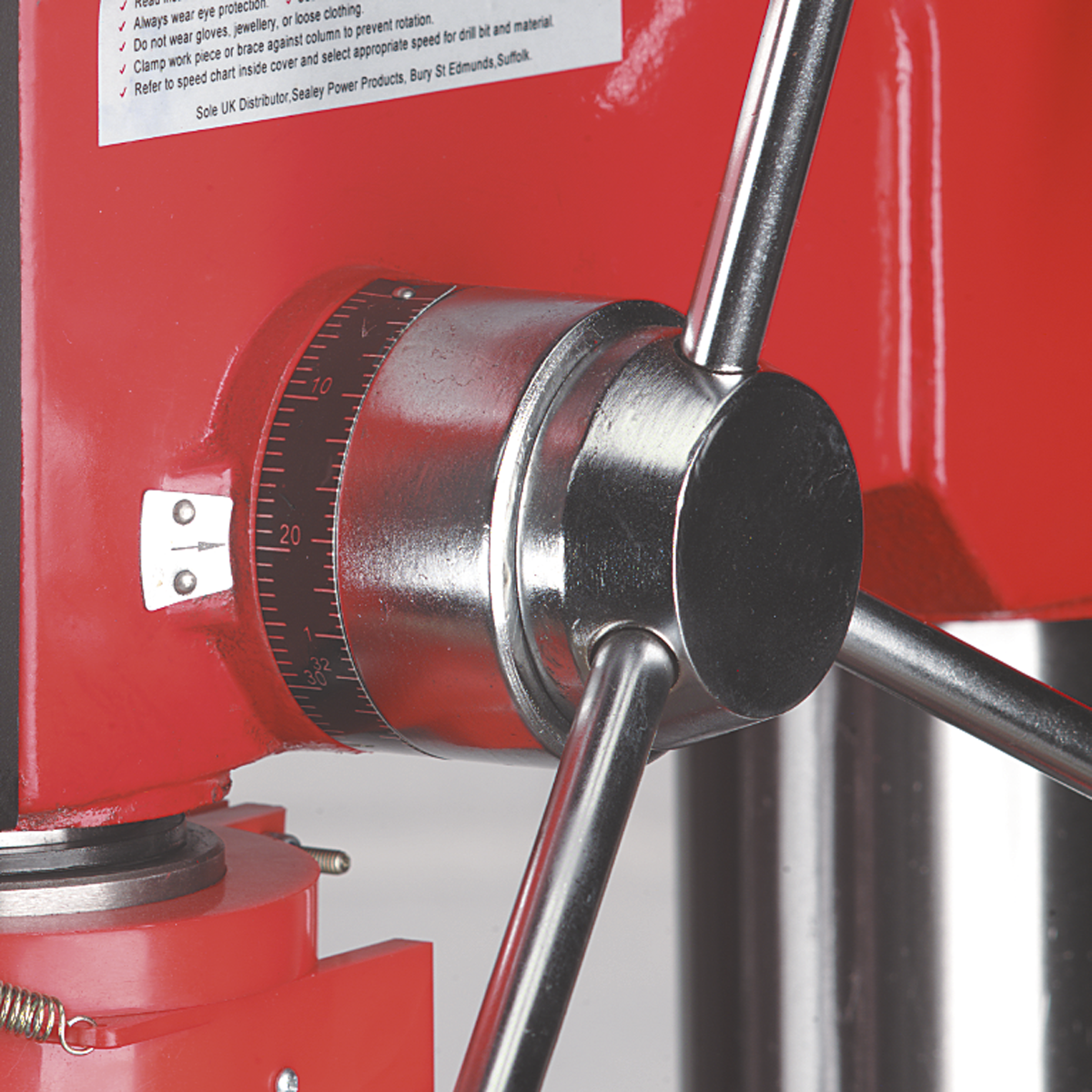

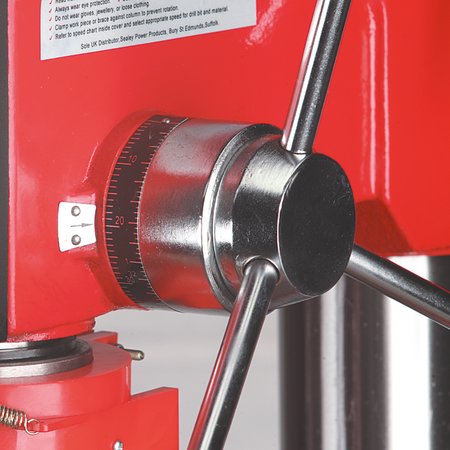

- Spindle Travel: 80mm.
- Weight: 59kg.
- Model No. GDM1630FR
