Precision mechanism with dial and locking rotating bezel, offering an accurate method of measuring a bore or detecting a taper or ovality. Model No. DBG508 will indicate the deviation from set size by up to 10mm, Model No's DBG507, DBG509 and DBG5011 up to 5mm and Model No. DGB5010 up to 3mm with an accuracy of 0.01mm. Probe body, dial indicator, anvils and spacer rings are also included.
Specification
- Precision mechanism with Ø55mm dial and locking rotating bezel, offering an accurate method of measuring a bore or detecting a taper or ovality.
- Measuring Range: 50-160mm.
- Will indicate the deviation from set size by up to 3mm with an accuracy of 0.01mm.

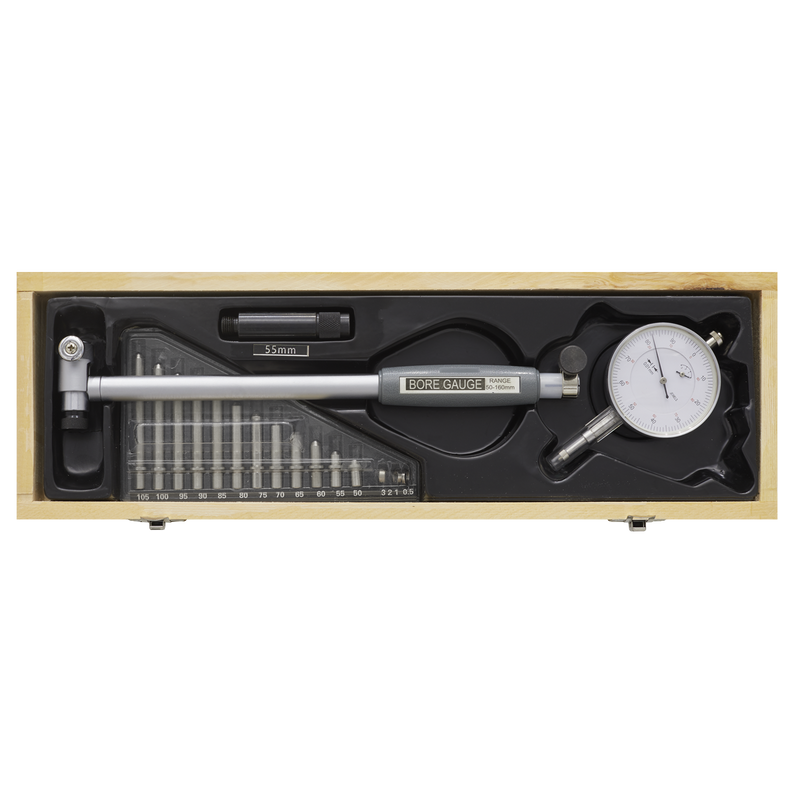

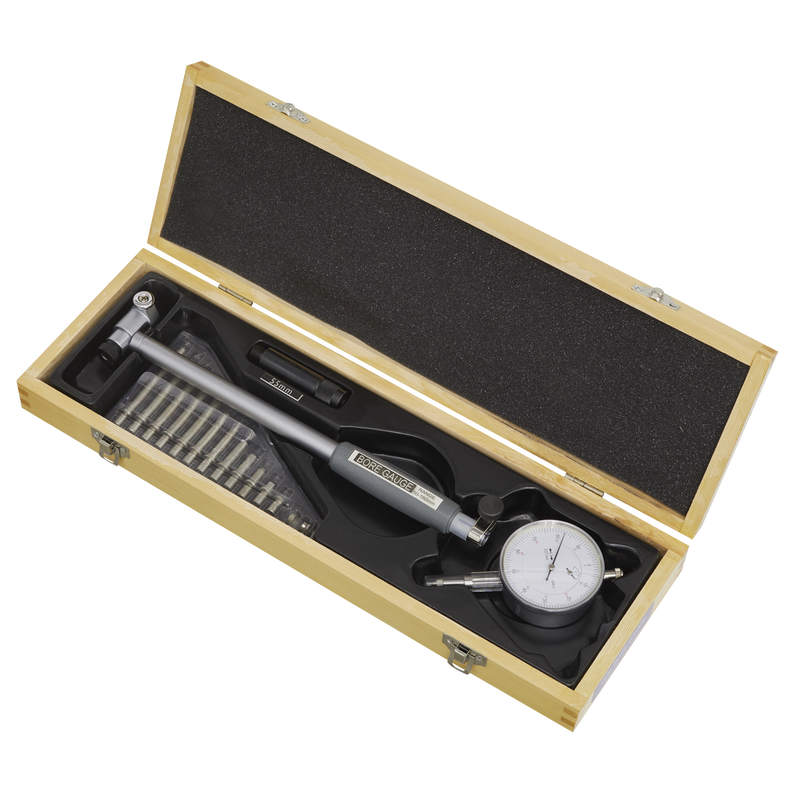

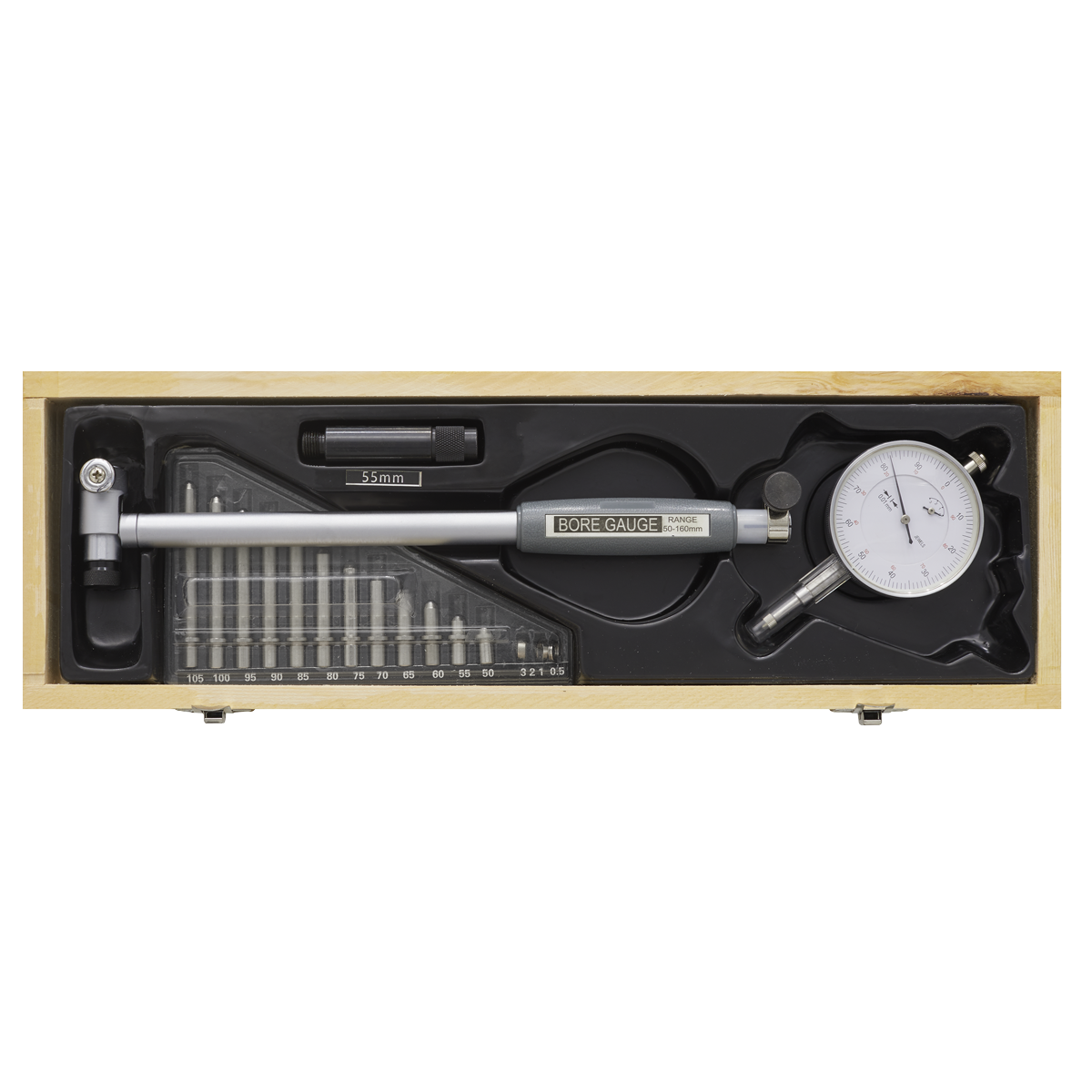

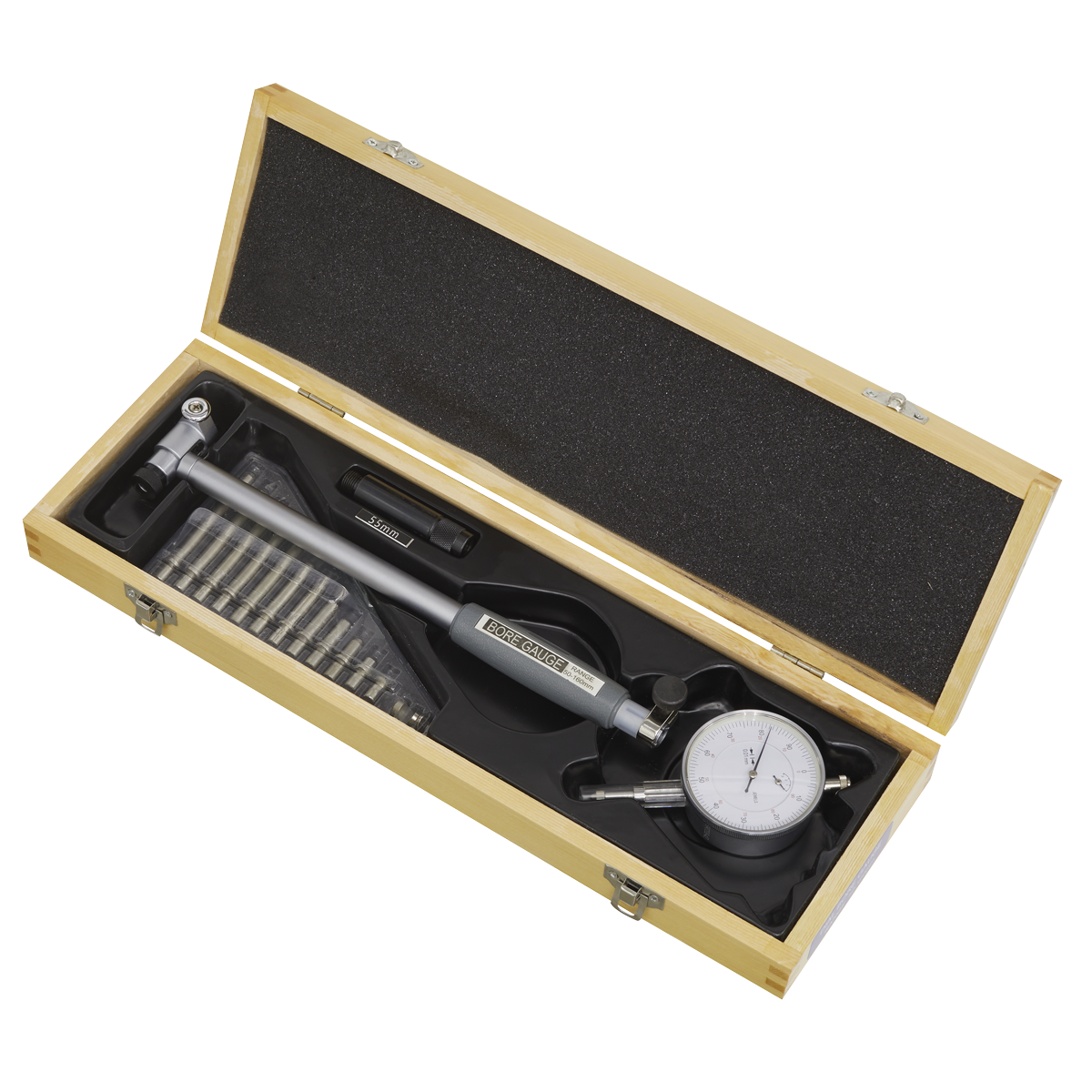

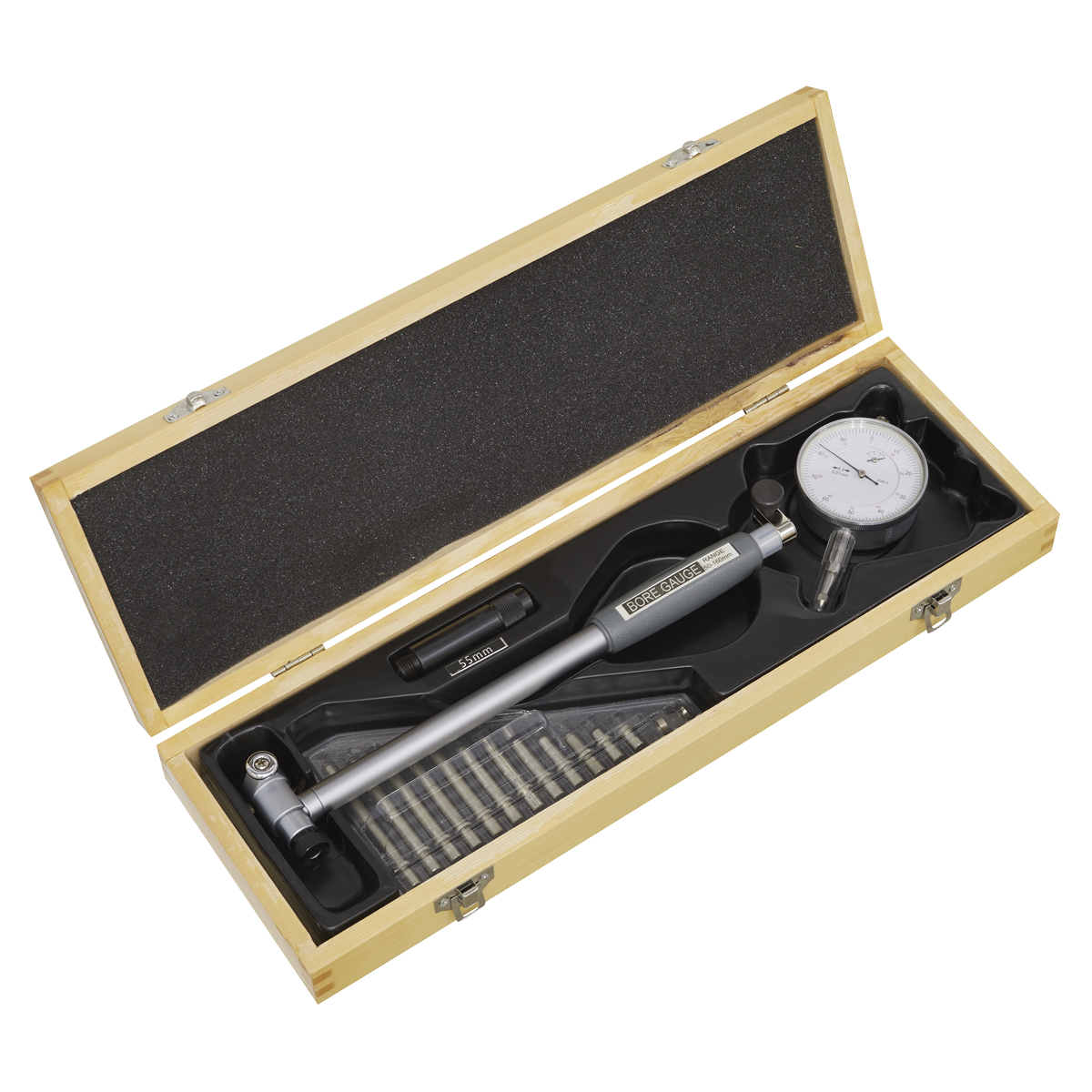

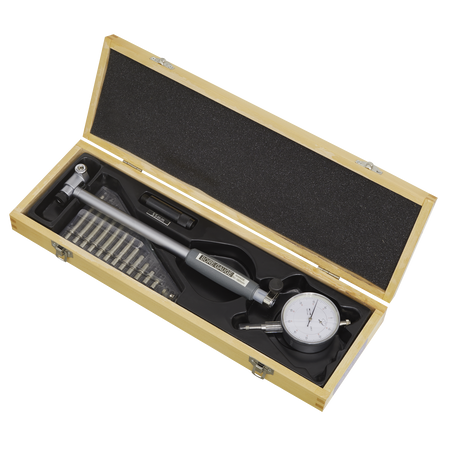

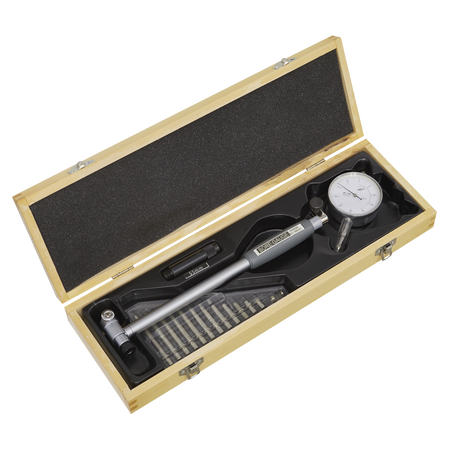

- Probe body, dial indicator, anvils and spacer rings are also included.
- Supplied in wooden storage case.
- Model No. DBG5010
